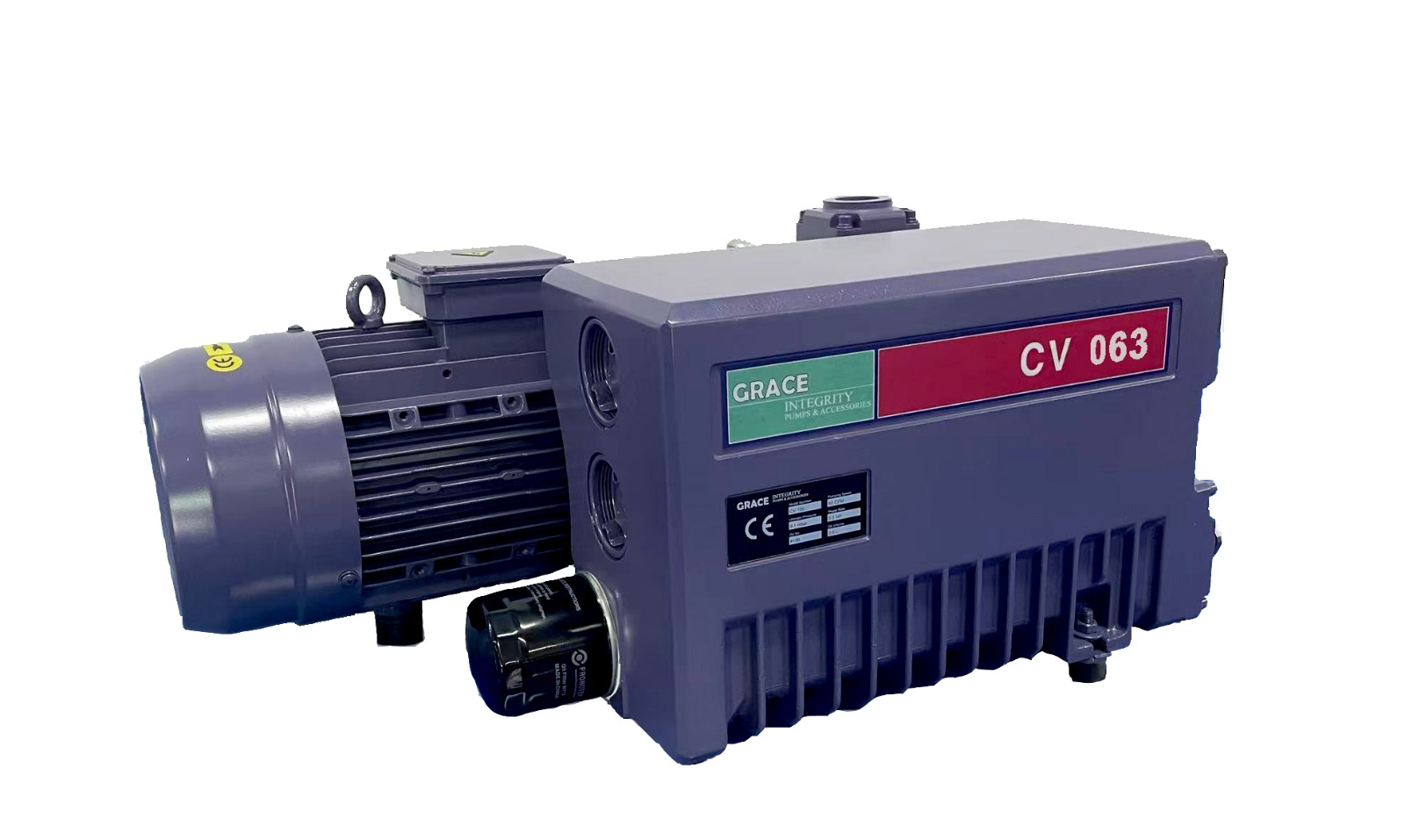

CV 063 Rotary Vane Vacuum Pump

CV 063 Rotary Vane Vacuum Pump

From $2,950.00

  • Reliable and stable performance
  • Effective lubrication is ensured even operation with high load of gases
  • No contamination
  • Anti-suction protection of oil and air on the vacuum pumps
  • Long life span
  • Bearing of industrial class is applied to the driving shaft

Technical Data

Technical data Frequency CV 063
Pumping Speed 50Hz 63m3/h
60Hz 76m3/h
Ultimate pressure mbar 0.1
Diameter “ G 1 ¼” / G 1 ¼”
Voltage 50Hz 220-240/345-415v
60Hz 220-275/380-480v
Nominal motor rating Kw 2.2
Current 50Hz 8.5/4.9A
60Hz 9.2/5.3A
Nominal speed rpm 1405/1720
Sound dB(A) 63
Oil (max) L 2
Weight(w/o oil) Kg 55



Dimensions (mm)
