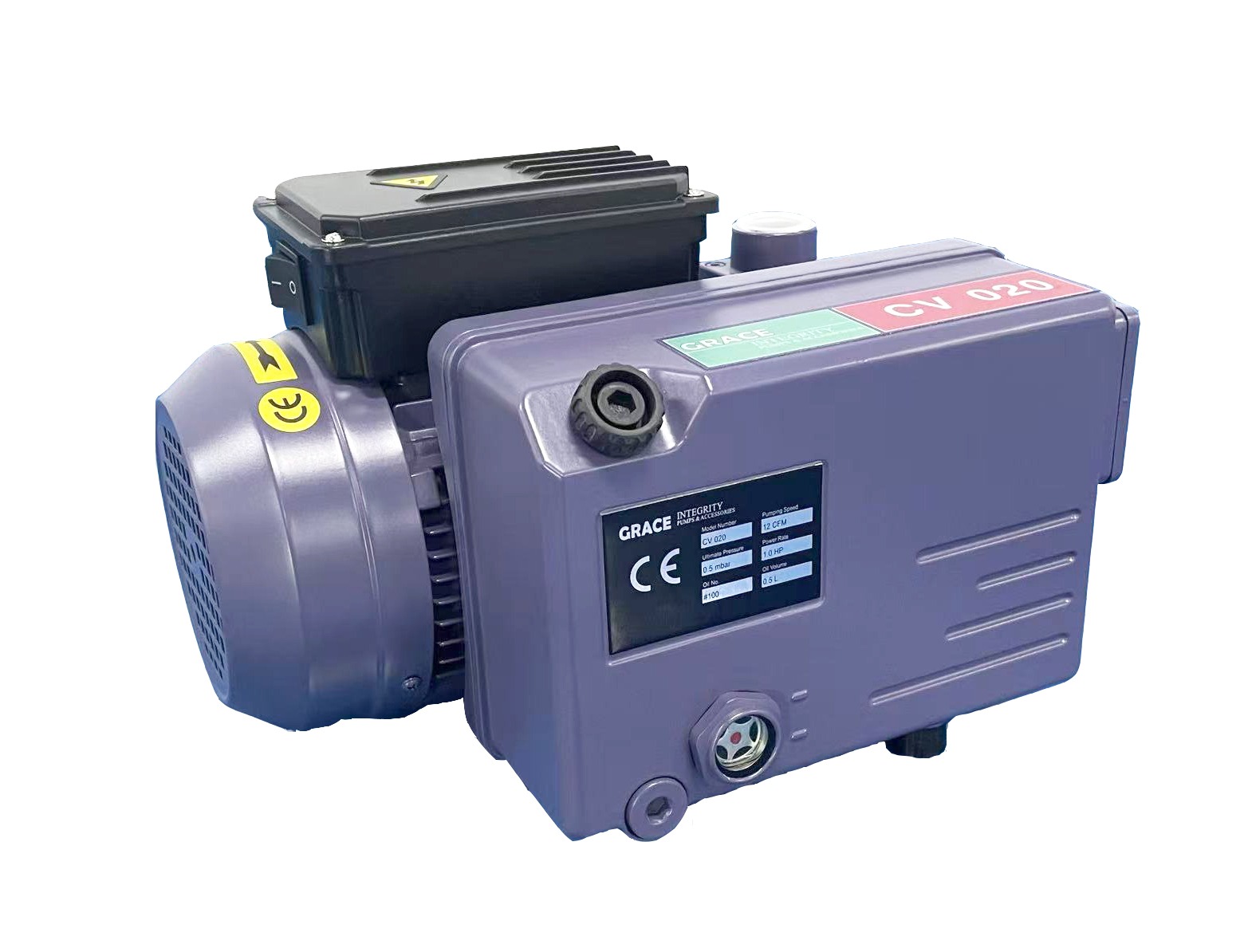

CV 020 Rotary Vane Vacuum Pump

Sale!
NFI Pumps and Transfer

$2,050.00

  • Reliable and stable performance
  • Effective lubrication is ensured even operation with high load of gases
  • No contamination
  • Anti-suction protection of oil and air on the vacuum pumps
  • Long life span
  • Bearing of industrial class is applied to the driving shaft

Technical Data

Technical data Frequency CV 020
Pumping Speed 50Hz 20m3/h
60Hz 25m3/h
Ultimate pressure mbar 0.5
Diameter “ G3/4
Voltage 50Hz 220-240/380-415v
60Hz 220-280/380-440v
Nominal motor rating Kw 0.75
Current 50Hz 3.0/1.75A
60Hz 3.6/2.1A
Nominal speed rpm 3000/3600
Sound dB(A) 62
Oil (max) L 0.5
Weight(w/o oil) Kg 19

Dimensions (mm)
