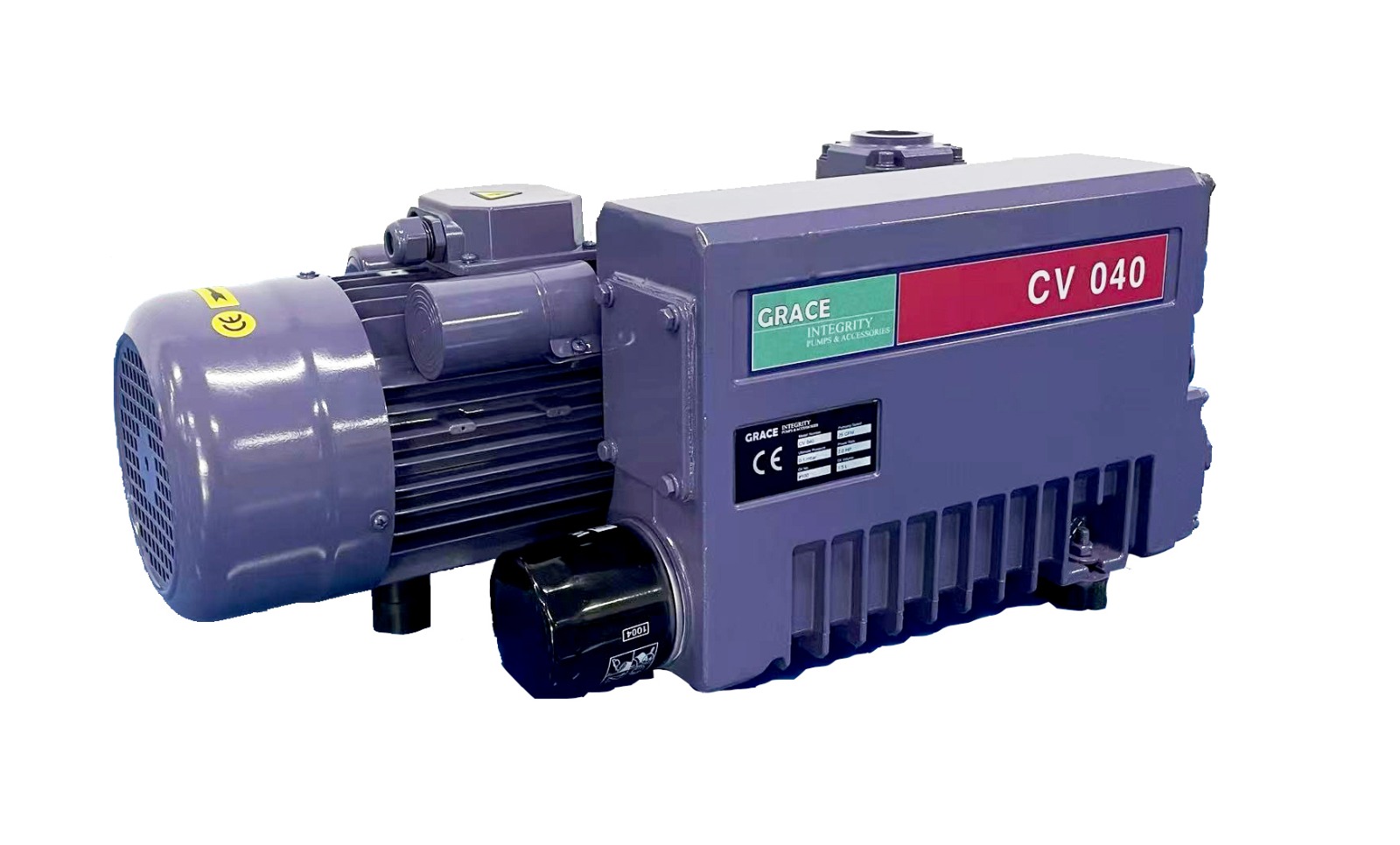

CV 040 Rotary Vane Vacuum Pump

$2,480.00

  • Reliable and stable performance
  • Effective lubrication is ensured even operation with high load of gases
  • No contamination
  • Anti-suction protection of oil and air on the vacuum pumps
  • Long life span
  • Bearing of industrial class is applied to the driving shaft

Technical Data

Technical data Frequency CV 040
Pumping Speed 50Hz 40m3/h
60Hz 48m3/h
Ultimate pressure mbar 0.1
Diameter “ G1 ¼”/G1 ¼”
Voltage 50Hz 220-240/345-415v
60Hz 220-275/380-480v
Nominal motor rating Kw 1.1
Current 50Hz 5.0/2.9A
60Hz 5.4/3.1A
Nominal speed rpm 1440/1720
Sound dB(A) 64
Oil (max) L 1.5
Weight(w/o oil) Kg 42

Dimensions (mm)
