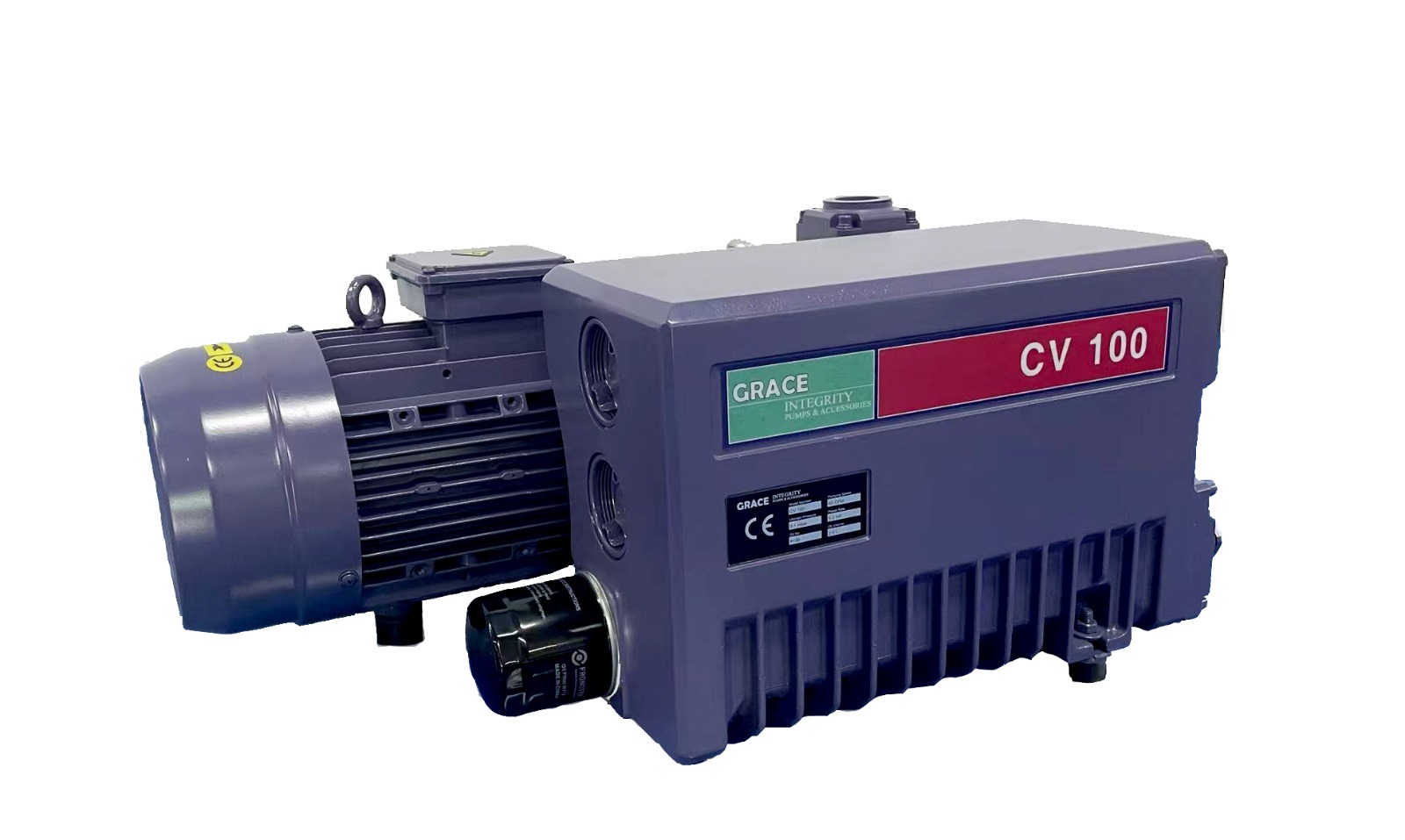

CV 100 Rotary Vane Vacuum Pump

NFI Pumps and Transfer

From $3,900.00

  • Reliable and stable performance
  • Effective lubrication is ensured even operation with high load of gases
  • No contamination
  • Anti-suction protection of oil and air on the vacuum pumps
  • Long life span
  • Bearing of industrial class is applied to the driving shaft

Technical Data

Technical data Frequency CV 100
Pumping Speed 50Hz 100m3/h
60Hz 120m3/h
Ultimate pressure mbar 0.1
Diameter “ G 1 ¼” / G 1 ¼”
Voltage 50Hz 220-240/345-415v
60Hz 220-275/380-480v
Nominal motor rating Kw 3
Current 50Hz 11.8/6.8A
60Hz 13.0/7.5A
Nominal speed rpm 1405/1720
Sound dB(A) 65
Oil (max) L 2
Weight(w/o oil) Kg 75

Dimensions (mm)
